Moroso Releases New LS Oil Pans and Supporting Components


20148

Product Description:
Steel, Wet Sump, 7 Quart Capacity
Engine Application: GM LS Series
Fits: 1968-’72 Nova, 1965-’72 Chevelle, 1967-’69 Camaro, Can also be used in additional applications;
check dimensions for clearance
  • Oil pan has a thick precision laser cut steel rail with a clear zinc finish
  • Clears 4.125"; stroke with most steel rods and can be used with Moroso No. 22941 Windage Tray
  • Front of the oil pan is 1-3/4"; deep to the beginning of the 6" deep sump
  • The sump is 9-11⁄16" long and 10-1/4" wide
  • Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
  • The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
  • Included billet aluminum adapter with two straight –10AN ports for remote filter installation
  • Uses stock dipstick

Part # Description
20148 Oil Pan GM LS Camaro Swap, Road Race, Remote Filter
Buy It Now



20149

Product Description:
Steel, Wet Sump, 7 Quart Capacity
Engine Application: GM LS Series
Fits: Rear sump applications and swap conversions that have clearance for an oil pan that is deeper in a cross-member area, check dimensions for clearance
  • Front of the oil pan is 1-13⁄16" deep to the beginning of the 6" deep sump
  • The sump is 8-3⁄8" long and 10-1/4" wide with a 7 Quart Capacity
  • Oil pan has a 3⁄16" thick precision laser cut steel rail
  • Clears 4.125" stroke with most steel rods and can be used with Moroso No. 22941 Windage Tray
  • Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
  • Included billet aluminum adapter with Two straight –10AN ports for remote filter installation
  • Uses stock dipstick

Part # Description
20149 Oil Pan, GM LS, Camaro / Swap, For Windage Tray, Road Race, Remote Filter
Buy It Now



38542

Product Description
  • For installing a Moroso or other brand aluminum fabricated oil pans on a GM LS engine
  • Designed to make pan installation easy and prolong gasket life
  • Lock nuts feature attached washers with serrated faces to provide a positive grip on the pan rail
  • Studs are made from heat-treated Grade 8 steel with a durable finish, nuts are zinc plated
  • Kit contains; *Quantity 13, 8mm x 1.25 x 45mm studs with matching nuts Quantity 2, 6mm x 1 x 50mm studs with matching nuts

Part # Description
38542 Oil Pan Stud Kit, for Aluminum Fabricated GM LS oil pans
Buy It Now



63811

Product Description
  • Direct bolt-in replacement to stock multi-piece plastic tank
  • Fabricated Aluminum for strength, factory tanks fail after repeated high heat situations
  • Will not turn "yellow" or "break down" like the factory plastic tank does
  • This Aluminum tank can be polished, chromed, painted, powder coated or left as is for a race look
  • Billet aluminum neck accepts the factory stock vented cap
  • Has 50% more capacity than the stock plastic tank

Part # Description
63811 Tank, Coolant, Nissan R35 GT-R
Buy It Now

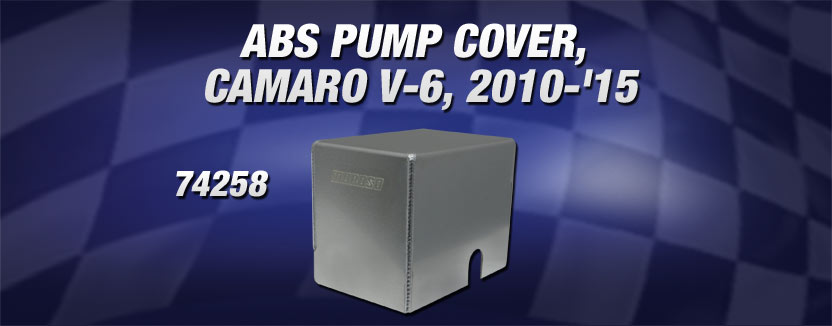

Product Description
  • Attaches over Factory ABS Braking Pump, covers up the "Spaghetti Like" tubing that comes out of the pump, including covering the ABS pump itself
  • Fabricated from .100 thick Aluminum with TIG Welded Corners
  • Improves under-hood appearance, matching Moroso tank line (sold separately)
  • Can be polished, chromed, powder coated, painted or left as is for a race look

Part # Description
74258 ABS Pump Cover, Camaro V-6, 2010-'15
Buy It Now
